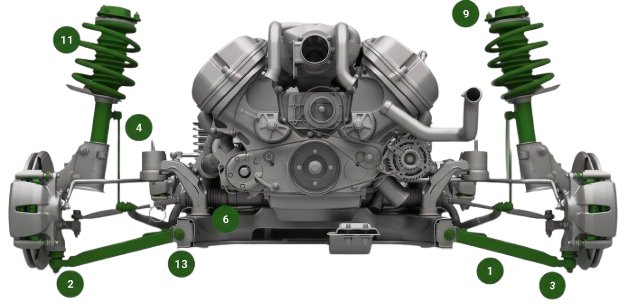

Suspension Parts

1. Arm assy

2. Ball joint

3. Ball joint boot

4. Stabilizer link

5. Bush

6. Stabilizer bush

8. Shock dust cover

7. Red

9. Shock absorber mount

10. Shock absorber bush

11. Shock absorber bumper

12. Frame bush

13. Collar

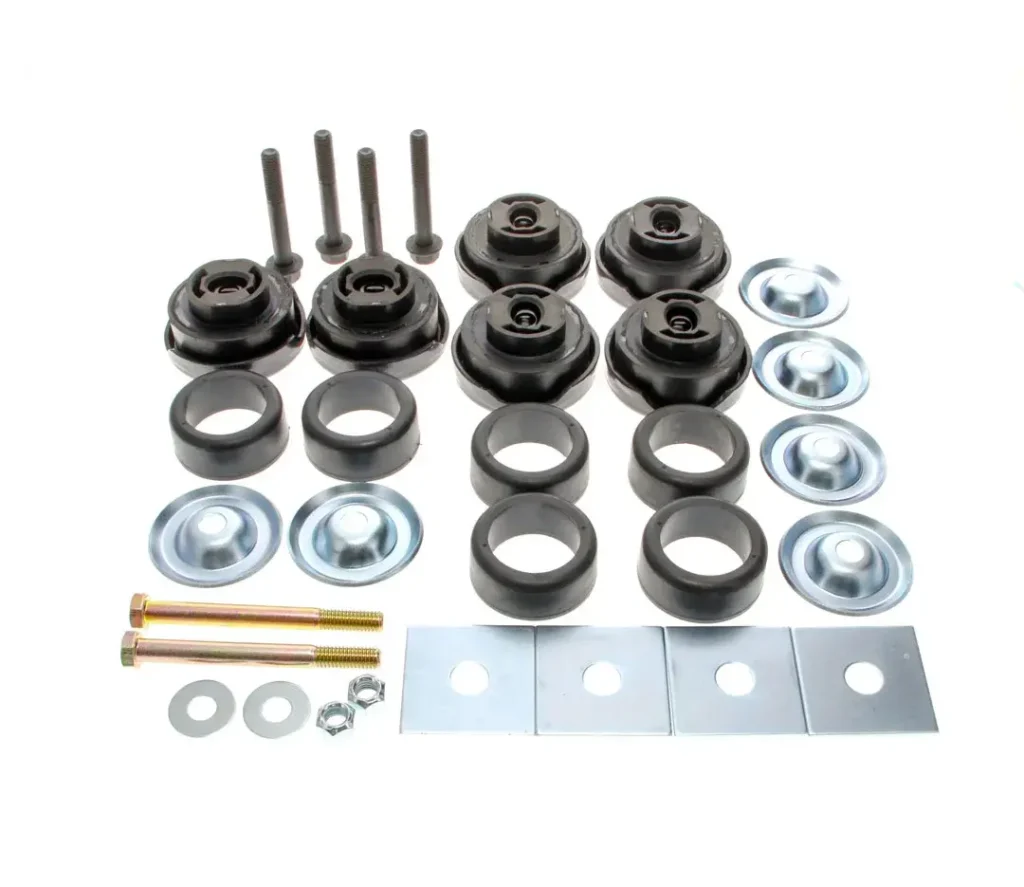

ARM & BODY BUSHING

Bushings in a car refer to small mounting connections used to join moving parts and pivots in a car suspension system together. Their primary purpose is to enhance smooth running of a car and minimize friction. They also absorb the shock before it can be transferred to the chassis.

The variety of bushing used in the car suspension system and in the chassis elements.

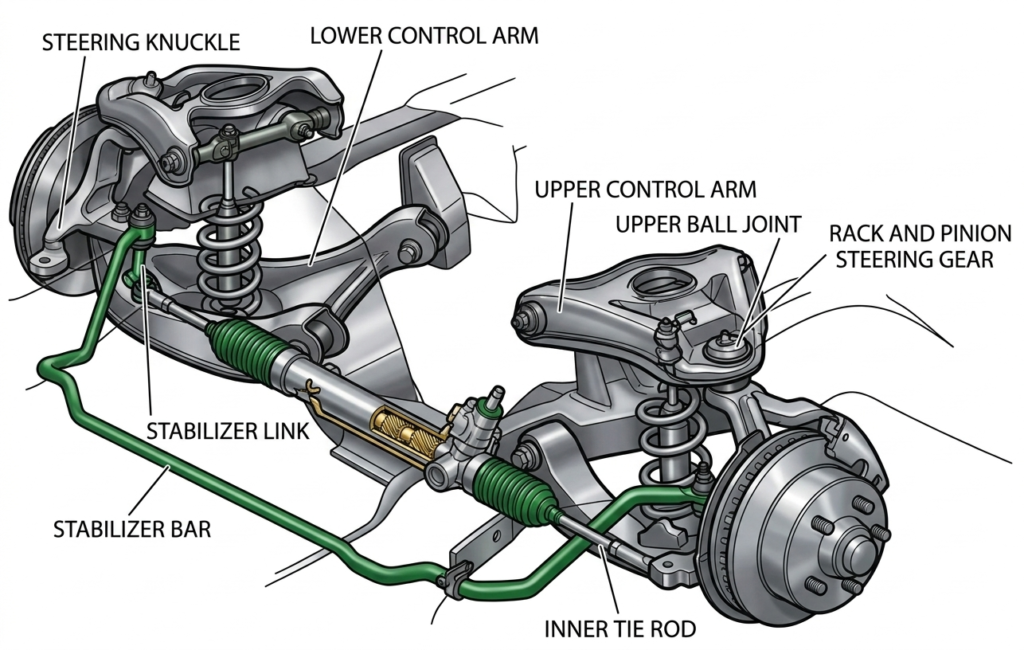

STABILISER BUSH, STEERING BUSHES AND STABILISER LINK

The steering and stabiliser systems provide manoeuvrability of your car.

Stabilizer bars and links are part of a car’s suspension system. They are sometimes also called anti-sway bars or anti-roll bars. Their purpose in life is to try to keep the car’s body from “rolling” in a sharp turn.

Steering rack with tie rods are responsible for car steering sensitivity and bushing is most replaceable part of this system.

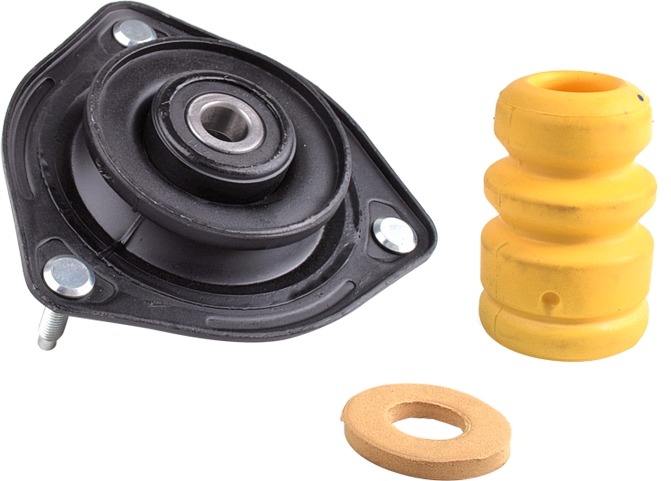

SHOCK ABSORBER MOUNTING & BUMPERS

The upper mount of the shock connects to the frame (i.e., the sprung weight), while the lower mount connects to the axle, near the wheel (i.e., the unsprang weight). In a twin-tube design, one of the most common types of shock absorbers, the upper mount is connected to a piston rod, which in turn is connected to a piston, which in turn sits in a tube filled with hydraulic fluid.

The MacPherson strut combines a shock absorber and a coil spring into a single unit. So, the mounting is specifically design for it. It has a massive cup as a spring sit and important bearing unit to deal with a twisting motion of strut road.

Shock Absorber Bumper ostensibly designed to absorb the impacts from wheels when the shock absorber has done its limit on bad road and allow the car to sustain it without damage.
